100% DC48V SOLAR AIR CONDITIONER

100% solar air conditioner with DC48V compressor and independent off-grid solar air conditioning system

  • TKF(R)-GW/VDC
  • 9000btu/1P;12000btu/1.5P;18000btu/2P
  • Solar PV,Solar AC
  • Converting solar energy into electricity for air conditioning work
  • DC48V, 100% solar energy
  • 3 years
Quantity:

1. Product Description

1.1 Overview

The DC48V 100% solar air conditioner is an independent off-grid solar system that uses a DC48V compressor to convert light energy into electrical energy using its own solar panels for independent operation of air conditioning equipment. Applicable to areas that are often interrupted when there is no power supply or power supply.
  • 100% solar energy, powered by solar panels.

  • DC48V compressors and motors, no inverters required.

  • Independent solar air conditioning system, no public grid required.

  • Reconfigure the number of solar panels and accumulators to meet individualized customization requirements (such as working period and hours).



1.2 Structure

100% solar air conditioner is mainly composed of indoor unit, outdoor unit, solar panel, solar controller, battery, PV cables and brackets:

100% ac 连接图


1.3 Working Principle

In a 100% solar air conditioning system, solar panels convert light energy into electrical energy and provide 48V DC voltage for the air conditioning system to operate.
  • When the air conditioner is working under sunshine, the electricity generated by the solar panel will be directly used by the air conditioning system.

  • When air conditioning is not working under sunshine, the electricity generated by the solar panels will be stored in the battery for use in air conditioning operation.


2. Equipment Specifications and Detailed

 2.1 Specifications


DC 48V 100% Solar  Air Conditioner
Power Supply:48VDC (42V   to 54 V)
Model No.
TKF(R)-26GW/VDC
TKF(R)-35GW/VDC
TKF(R)-50GW/VDC
Performance(R410a)
 Capacity
Cooling
Btu/h
9000
12000
18000
W
2600
3500
5000
Heating
Btu/h
10000
13500
20000
W
2900
3900
5700
Noise
Indoor
dB(A)
≤40
≤42
≤45
Outdoor
dB(A)
≤50
≤52
≤55
Air Circulation
m³/h
450
550
850
Suitable Area
10~15
12~22
20~35
EER
W/W
4.64
4.55
4.35
Btu/h/w
16.07
15.58
15.65
Power Consumption
Power Input
Cooling
W
560
770
1150
Heating
W
600
800
1180
Rated Current
Cooling
A
11.5
15.7
23.9
Heating
A
12.1
16.3
24.5
Dimension
Indoor Unit
Net
mm
790*285*210
790*285*210
910*305*220
Shipping
mm
962*352*272
962*352*272
970*360*280
Outdoor Unit
Net
mm
790*270*550
790*270*550
850*340*600
Shipping
mm
880*360*590
880*360*590
940*405*665
Weight
Indoor Unit
Net/Gross
kg
9/11
9/11
11/13
Outdoor Unit
Net/Gross
kg
29/32
33/36
52/56
Volume and weight
0.3CBM/43KG
0.3CBM/47KG
0.38CBM/69KG
Solar power system
Solar Panels
Model
4*315W
4*340W
4*350W
Average daily electricity production
(KWH)
5.8
6.2
6.4
Available air conditioning runtime(H)
10.5
8
5.6
GEL solar battery
Model
4*120AH
4*125AH
4*150AH
Stored Electricity
(KWH)
5.8
6
7.2
Available air conditioning runtime(H)
10.5
8
6.3
Solar charge controller
48V60A
48V60A
48V60A
Volume and weight
0.5CBM/245KG
0.5CBM/250KG
0.5CBM/285KG


2.2  Detailed

IMG_20190120_220846

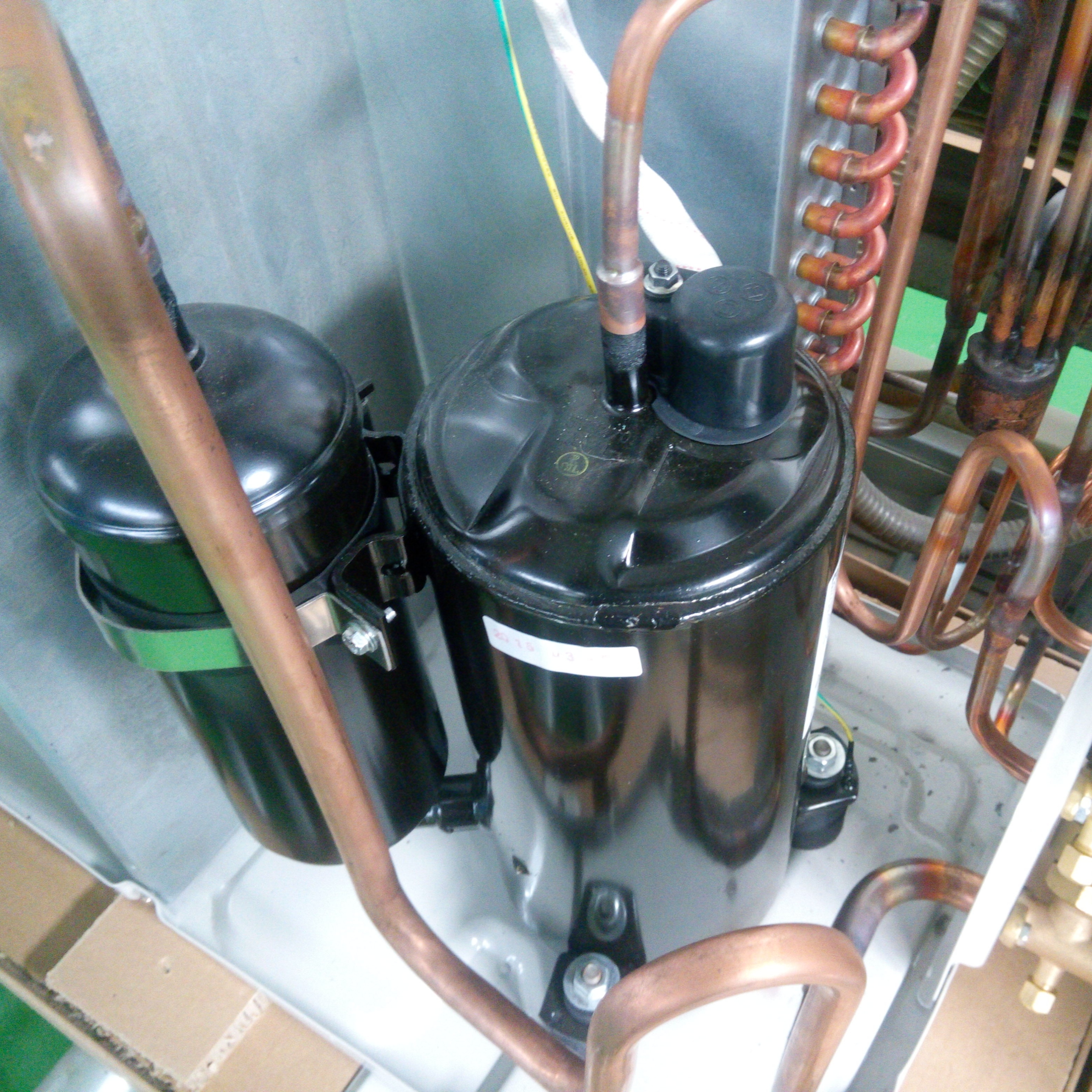

1.100% solar air conditioner:

• DC48V compressor, permanent magnet full DC type, 100% energy saving.

48V full DC inverter controller system, no inverter required, improve utilization.

• Both indoor and outdoor motors use brushless DC motors with good stability and long service life.

• High efficiency heat exchanger, more energy saving effect.

SFM-OFF-2

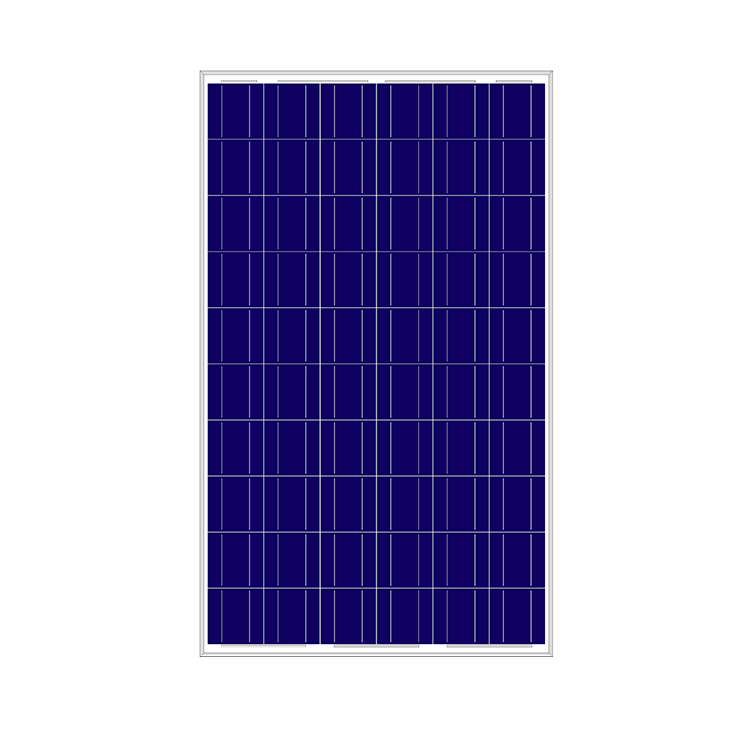

2.Solar panel:


• Long lifetime: ≥25 years; Less power decrease.

• Highest conversion efficiency of 17% solar cells.

• Anti-reflecting coating and high transmission rate glass and mechanical strength.

• High quality EVA and TPT to prevent destroying and water.

• Good performance of preventing from atrocious weather such as wind and hails.


控制器1

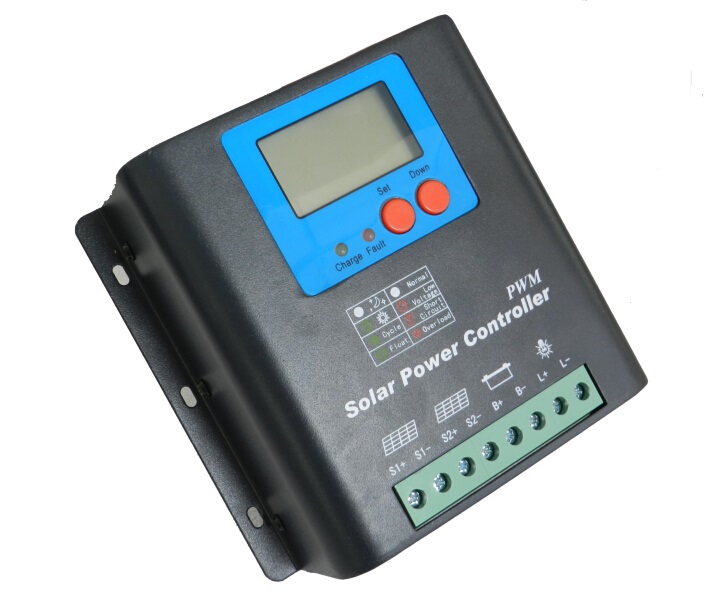

3.Solar controller:


• Metal Cover, beautiful, good adaptability to weather changes.

• Aluminum profile heatsink for fast heat dissipation and long service life.

• LED screen, intuitive reading information, easy to operate.


SFM-OFF-5

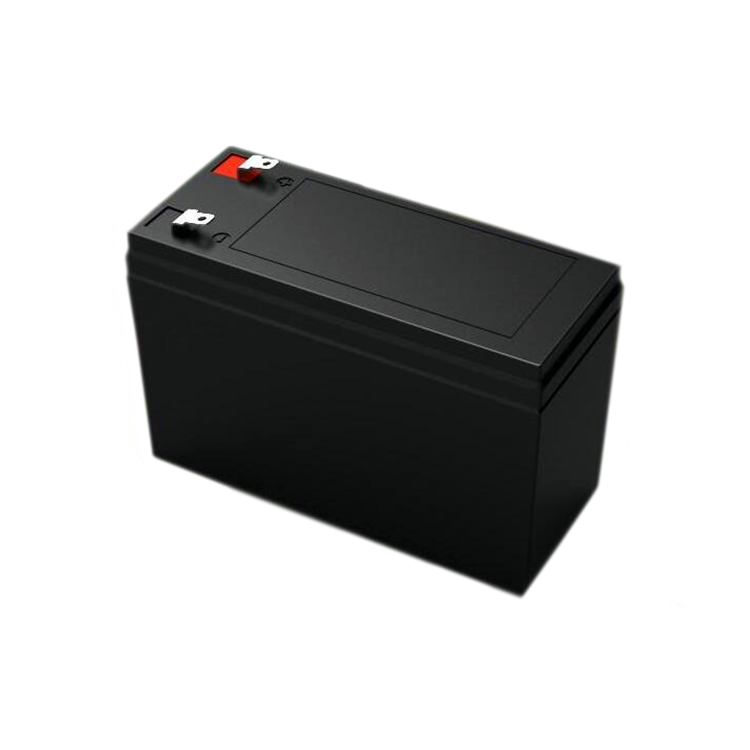

4.GEL battery:


• Maintenance-free battery, safe and environmentally friendly, ture green power.

1000-1200 times of recycling, good quality, long service life.

• Strong adaptability to ambient temperature (-40°C--65°C).

• Withstand long-term discharge capacity, cycle discharge capacity, deep discharge and high current discharge capability.

• Overcharged and overdischarged self-protection.
